438VE

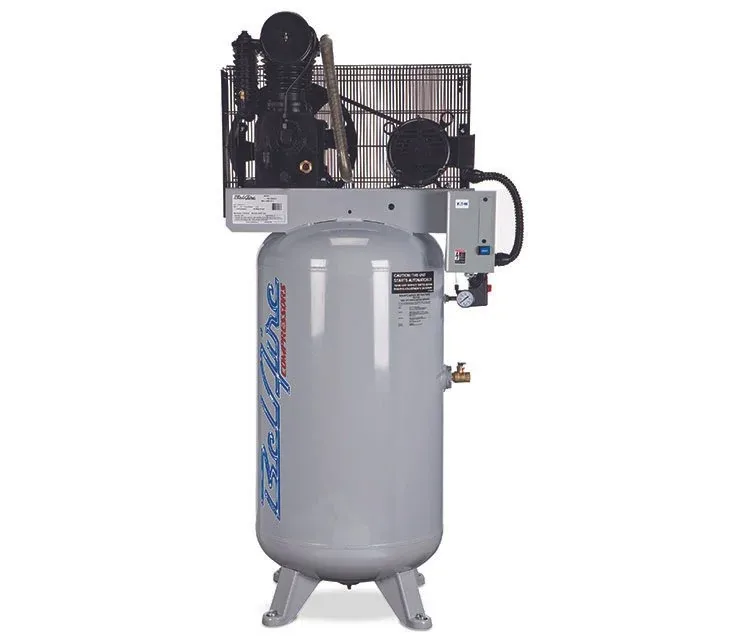

BelAire 438VE Air Compressor – Heavy-Duty 5 HP Vertical Industrial Air Compressor (80 Gallon)

The BelAire 438VE Air Compressor is a professional-grade two-stage cast iron stationary air compressor designed for automotive workshops, fabrication shops, CNC facilities, and industrial operations that require reliable and continuous compressed air. It features a 5 HP three-phase electric motor, a rugged low-RPM cast iron two-stage pump, and an 80-gallon ASME-certified vertical tank, delivering strong performance with long service life.

It produces approximately 18 CFM at 100 PSI and 16 CFM at 175 PSI, with a maximum operating pressure of 175 PSI, making it suitable for powering multiple pneumatic tools and medium-duty industrial applications.

Key Features

- 5 HP industrial-grade electric motor (208–230V, three-phase)
- Heavy-duty two-stage cast iron pump for durability and efficiency
- Large 80-gallon vertical ASME-certified tank
- Air delivery: ~18 CFM at 100 PSI / ~16 CFM at 175 PSI
- Maximum pressure: 175 PSI
- Belt-driven low-RPM design for quieter operation and longer pump life
- Magnetic starter included for safe motor control
- Belt guard aftercooler (Elite configuration) for improved air quality and cooling
- Low oil level protection switch (Elite configuration)
- Built for continuous industrial duty cycles

Performance Overview

The BelAire 438VE is designed for stable, continuous shop air where reliability matters more than portability. Its cast iron pump and low-RPM configuration reduce heat buildup and mechanical wear, helping extend service life in demanding environments.

The 80-gallon vertical tank helps stabilize pressure during tool operation, reducing frequent cycling and improving efficiency across multi-user workstations.

Ideal Applications

- Automotive repair workshops
- CNC machining and fabrication
- Industrial maintenance departments
- Metalworking and welding shops
- Manufacturing facilities
- Woodworking and finishing operations
- Multi-tool pneumatic systems
