HPL20-24

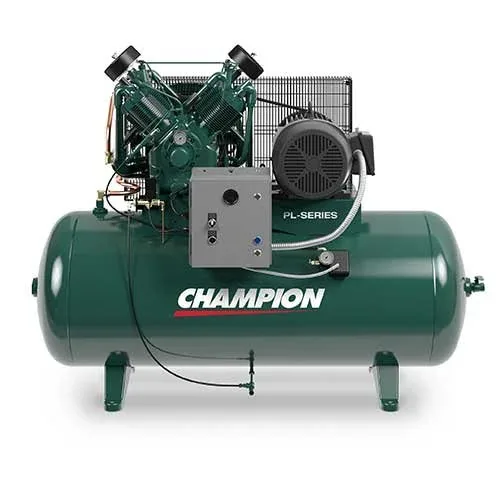

Champion HPL20-24 Air Compressor – 20 HP PL-Series Pressure Lubricated Industrial Compressor (240 Gallon)

The Champion HPL20-24 Air Compressor is a premium industrial PL-Series pressure-lubricated two-stage reciprocating air compressor engineered for continuous-duty manufacturing, automotive production, heavy fabrication, and centralized compressed air systems. Equipped with a 20 HP three-phase electric motor, a heavy-duty PL-70A cast iron pressure-lubricated pump, and a massive 240-gallon ASME-certified horizontal air receiver tank, this compressor is designed to deliver exceptional airflow, reliability, and long-term performance in demanding industrial environments.

With an output of approximately 77.5 CFM at 175 PSI, the HPL20-24 provides the capacity required for multiple production lines, CNC machinery, pneumatic tools, and facility-wide compressed air distribution systems.

Key Features

- 20 HP industrial-grade three-phase electric motor
- Heavy-duty PL-70A pressure-lubricated two-stage cast iron compressor pump
- Large 240-gallon ASME-certified horizontal air tank
- Air delivery: ~77.5 CFM @ 175 PSI
- Maximum operating pressure: 175 PSI
- Pressure lubrication system for continuous oil delivery to critical components
- Hydraulic unloading system for smooth, loadless starting
- Heavy-duty disc valve technology for maximum efficiency
- Intercooled two-stage compression design
- Industrial-grade crankshaft and bearing assembly
- Engineered for 24/7 continuous-duty operation
- Low maintenance and extended service intervals

Advantages of the PL-Series Design

Pressure Lubrication System

Provides constant oil circulation to critical internal components, reducing friction and maximizing durability.

Heavy-Duty Cast Iron Construction

Built for long service life and resistance to thermal stress under continuous operation.

High Airflow Capacity

Delivers sufficient compressed air for large industrial facilities and multi-shift operations.

Reduced Downtime

Designed for extended service intervals and dependable operation in demanding production environments.

Ideal Applications

- Manufacturing plants
- Automotive assembly facilities
- CNC machining operations
- Metal fabrication workshops
- Industrial maintenance departments
- Packaging and processing plants
- Centralized compressed air systems
