HR20-24

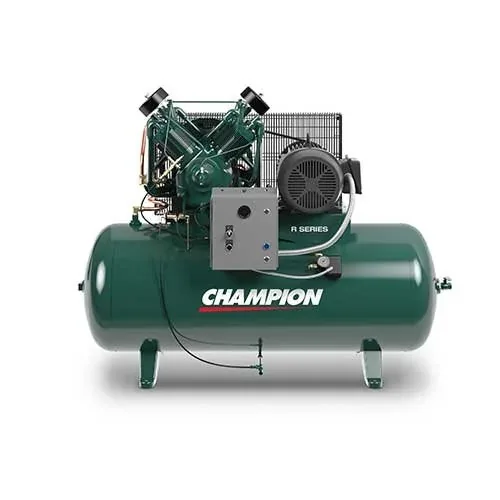

Champion HR20-24 Air Compressor – 20 HP R-Series Industrial Two-Stage Air Compressor (240 Gallon)

The Champion HR20-24 Air Compressor is a heavy-duty R-Series two-stage reciprocating air compressor engineered for industrial manufacturing, automotive production, fabrication facilities, and centralized compressed air systems. Equipped with a powerful 20 HP three-phase electric motor, Champion’s rugged R-70 cast iron compressor pump, and a large 240-gallon ASME-certified horizontal air receiver tank, this compressor delivers outstanding airflow, durability, and efficiency for continuous-duty industrial operations.

Designed to provide reliable compressed air under demanding conditions, the HR20-24 produces approximately 77.8 CFM at 175 PSI, making it ideal for facilities operating multiple pneumatic tools, CNC machines, automated production lines, and air-powered equipment simultaneously. Its low-speed pump operation minimizes heat buildup and wear, ensuring years of dependable performance.

Key Features

- 20 HP industrial-duty three-phase electric motor
- Heavy-duty Champion R-70 two-stage cast iron compressor pump
- Air delivery: 77.8 CFM @ 175 PSI
- Maximum operating pressure: 175 PSI
- Large 240-gallon ASME-certified horizontal air receiver tank
- Low-speed pump design for cooler operation and extended service life
- Splash-lubricated crankcase system
- High-efficiency disc valve technology
- Deep-finned intercooler for enhanced cooling
- Centrifugal loadless starting system
- Industrial-grade cast iron cylinders and crankcase
- Continuous-duty industrial operation
- Belt-driven compressor configuration

R-Series Technology Benefits

Heavy-Duty Cast Iron Construction

Champion R-Series compressors are manufactured with durable cast iron cylinders, crankcases, and heads for exceptional industrial reliability.

High Airflow Performance

The R-70 pump delivers nearly 78 CFM at 175 PSI, supporting demanding industrial equipment and multi-user compressed air systems.

Efficient Cooling System

Deep-finned intercoolers and optimized airflow reduce discharge temperatures and improve overall compressor efficiency.

Proven Reliability

The R-Series platform has been trusted in industrial environments for decades due to its robust design and long service life.

Ideal Applications

- Manufacturing facilities
- Automotive production plants
- CNC machining centers
- Metal fabrication shops
- Industrial maintenance operations
- Packaging facilities
- Assembly lines
- Pneumatic tool systems
- Centralized compressed air networks
