HR30D-24

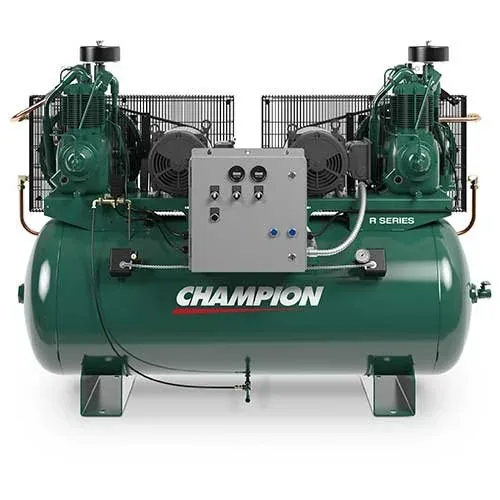

Champion HR30-24 Air Compressor – 30 HP R-Series Industrial Two-Stage Air Compressor (240 Gallon)

The Champion HR30-24 Air Compressor is a heavy-duty R-Series industrial reciprocating compressor engineered for large manufacturing plants, automotive production facilities, fabrication workshops, and centralized compressed air systems requiring very high airflow and continuous-duty reliability. It is powered by a 30 HP three-phase electric motor and equipped with Champion’s rugged R-70 two-stage cast iron compressor pump, mounted on a large 240-gallon ASME-certified horizontal air receiver tank.

Designed for high-demand industrial environments, the HR30-24 delivers approximately 200–205 CFM at 175 PSI, making it one of the highest-output single-frame R-Series systems available. This compressor is built for 24/7 operation in multi-shift production facilities where compressed air is critical to uptime and productivity.

Key Features

- 30 HP industrial three-phase electric motor
- Heavy-duty Champion R-70 two-stage cast iron compressor pump
- Air delivery: ~200–205 CFM @ 175 PSI
- Maximum operating pressure: 175 PSI
- Large 240-gallon ASME-certified horizontal air receiver tank
- Low-speed pump design (~907 RPM) for reduced wear and heat
- Splash-lubricated crankcase system for proven reliability
- High-efficiency disc valve technology
- Deep finned intercoolers for improved cooling
- Loadless centrifugal unloading system for safe starting
- Heavy-duty industrial control panel (configuration dependent)
- Continuous-duty operation for demanding environments

R-Series Advantages

Heavy-Duty Cast Iron Construction

Built for long service life under continuous industrial loads.

High Airflow Capacity

Delivers ~200+ CFM, suitable for large-scale production facilities.

Low-Speed Efficiency Design

Approximately 907 RPM operation reduces wear and improves longevity.

Proven Industrial Reliability

Widely used in manufacturing environments where downtime is costly.

Ideal Applications

- Manufacturing plants
- Automotive production facilities
- CNC machining operations
- Metal fabrication workshops
- Industrial maintenance departments
- Packaging and processing plants
- Large assembly lines
- Central compressed air systems
